    Cleanroom Air Vented Shower

    Ask Lasest Price
    Brand Name : HFD
    Model Number : HDF-FLS-BXG2-2
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

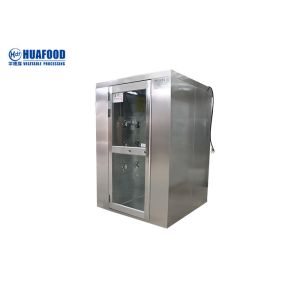

    Cleanroom Air Vented Shower

    High Safety Level Air Vented Shower Heads For Pharmaceutical industry


    Air Shower is used to blow away dust on clothing, equipments, materials and tools before workers or objects enter the Clean Room; meanwhile, its Air Lock function may effectively control personnel passing in and out, as well as act as various levels of buffer room for clean room to prevent cross pollution.


    Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.

    Cleanroom Air Vented Shower


    ModelHDF-FLS-BXG2-2HDF-FLS-BXG1-1HDF-FLS-BXG3-2
    Nozzles12 (6 on one side)6(6 on one side)24 (12on one side)
    Air shower time0-99s adjustable0-99s adjustable0-99s adjustable
    Nozzle diameterφ30mmφ30mmφ30mm
    Wind speed at
    nozzle outlet
    ≥20m/s≥20m/s≥20m/s
    Weight400kg200kg300kg
    Filter effect≥99.99% for dust with particle size ≥0.3 μm
    (sodium flame method)
    Outer diameter
    dimension
    1400L*1500W*2100H1200L*1000W*2100H1400L*1920W*2100H
    Inner diameter
    dimension
    800L*1420W*2000H800L*920W*2000H800L*1420W*2000H
    Power supply380/220V 50HZ380/220V 50HZ380/220V 50HZ
    Overall dimensions of high efficiency filter600*600*120
    (two on one side)
    600*600*120
    (two on one side)
    600*600*120
    (two on one side)
    Maximum power2.2KW0.5kw2.2kw
    Shell materialall stainless steel
    (304 or 201)
    all stainless steel
    (304 or 201)
    all stainless steel
    (304 or 201)

    Cleanroom Air Vented Shower


    FEATURES:


    1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.


    2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.


    3,Floor and nozzles are made of quality stainless steel.


    4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.


    5, air velocity can up to 25m/s. professional and fast design, non-standard products.
